Technical parameters:
1. Rated current: 1A
2. Operating temperature: -25°C ~ +85°C
3. Storage temperature: -25°C ~ +85°C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms min ./500VDC
6. Withstand voltage: 500V AC for 1 minute
7. Durability times: 1500 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant

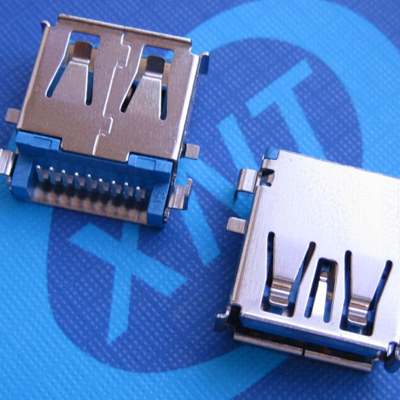

Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, etc.;
2. The inspection process for this product is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3 The production process of this product is: pre-line inspection-->folding material tape-->assembly terminal strips-->assembly shell-->riveting shell-->electricity inspection-->pressure test-- >Groove Inspection-->Appearance Inspection-->FQC Inspection-->Storage
