Product ID: | A1254WR-S-**P |

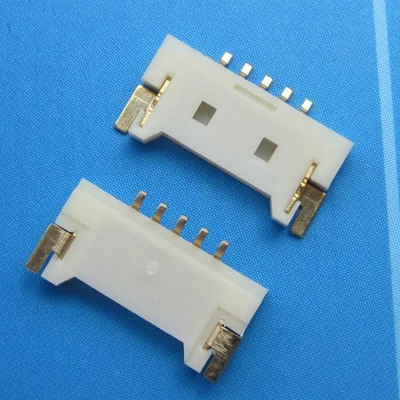

product name: | WAFER SMT type 1.85H slim |
specification: | Plastic: white high temperature UL94V-0; terminal: copper alloy |
Product Note: | WAFER SMT type 1.85H 02~30Pin |
Product Category: | FPC LVDS Series |
Technical parameters:
1. Rated current: 1.0A
2. Rated voltage: 125V
3. Contact resistance: 20m ohms max.
4. Withstand voltage: 500VAC
5. Insulation resistance: 100M ohms min./500VDC
6. Durability: 100 times
7 Product temperature: 245 ± 5 °C 10S
8. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, tablet, navigation, LCD TVs, printers, copiers, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automata Plug Terminals & Positioning Feet-->Electricity Test-->Pressure Resistance Test-->Flatness Test-->Appearance Test-->FQC Test-->Storage
