Product ID: | 0011xAAX09x |

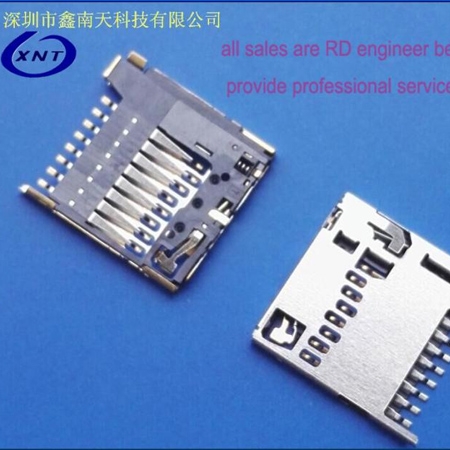

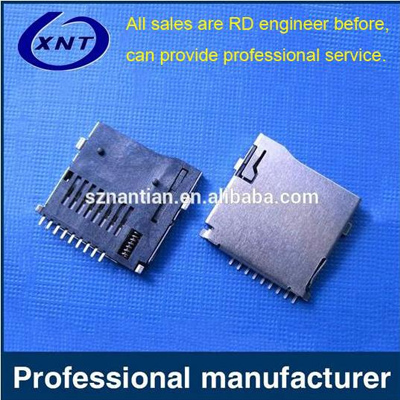

product name: | TF/microSD push strip detection (normally open) (H=1.85mm) |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Note: | Push type with CD terminal (normally open) L16.00*W15.50*H1.85 extended pin |
Product Category: | microSD TF SD Series |
Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 100V AC/DC
3. Operating temperature: -20°C ~ +60°C
4. Storage temperature: -40°C ~ +70°C
5. Contact resistance : 100m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability: 10000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones and tablet computers. Navigators, LCD TVs, automobiles, smart wearable devices, aeronautical fields, etc.;
2. Inspection procedures for secondary products: IQC feed inspection--> storage--> pre-line self-test--> IPQC inspection--> FQC Final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic assembly of terminals, sliders, rods, springs -> assembled shell -> push inspection -> electrical inspection -->Flatness test --> Appearance test --> FQC test --> Inbound
