Product ID: | XNT-POGO-xxxxxxxx |

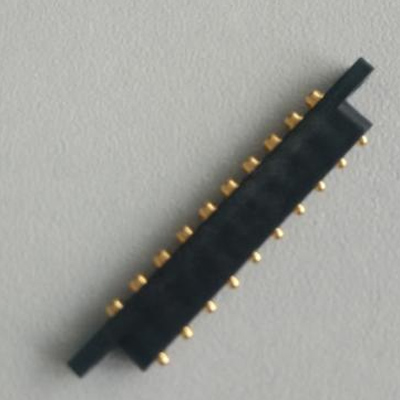

product name: | POGO pin male pitch 2.50mm 10Pin |
specification: | Plastic: Black high temperature UL94V-0; Terminal: GF |
Product Note: | POGO pin DIP type L32.40*W6.00*H3.25 |
Product Category: | Pin Header POGO Pin Series |
Technical parameters:
1. Rated current: 1A
2. Rated voltage: 12V
3. Contact resistance: 30m ohms max.
4. Withstand voltage: 500V AC
5. Insulation resistance: 100M ohms min.
6. Product temperature: 220±5°C 10S
7. RoHS Compliant
8. Operating Temperature: -20°C ~60°C
9. Durability: 20000
Product Description:
1. This connector is widely used in computers, flatbeds, copiers, printers, etc.;
2. The inspection process for this product is: IQC Feed Inspection-->Importing-->Pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product production process is: pre-online inspection-->automatic assembly Terminals-->DIP Inspection-->Appearance Inspection-->FQC Inspection-->Storage
