Product ID: | MU136-xxxx |

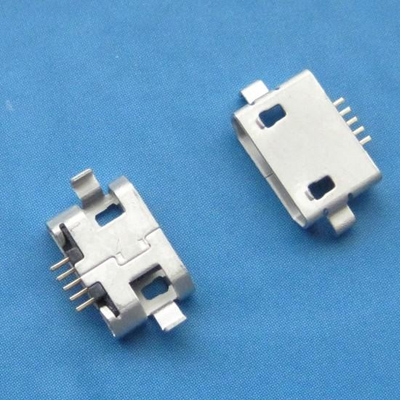

product name: | micro USB 5pin female B type沉板 1.0mm DIP |
specification: | Plastic: High temperature UL94V-0; Terminal: Copper alloy shell: Copper alloy |
Product Note: | B type female head, sink plate 1.0mm, terminal SMT type housing DIP type L9.65*W4.95*H2.10 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1A
2. Operating temperature: -30°C ~ +80°C
3. Storage temperature: -30°C ~ +80°C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min ./500VDC
6. Withstand voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, Navigator, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3 The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled case-->Riveted case-->Electrical inspection-->Pressure proof-->Flatness test-->positive Bit Inspection -> Appearance Inspection -> FQC Inspection -> Storage
