Product ID: | XNTMICROUSB180CB |

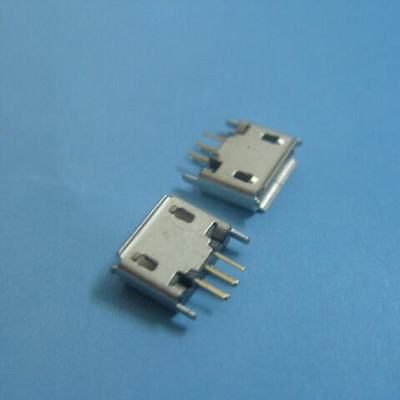

product name: | microUSB B type 5pin dip type |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Copper alloy |
Product Note: | B type female connector, terminal DIP type housing DIP type L8.00*W7.15*H2.90 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +80 °C
3. Storage temperature: -30 °C ~ +80 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. Navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3 The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled case-->Riveted case-->Electrical inspection-->Pressure proof-->Pipe inspection-->Appearance Inspection-->FQC Inspection--> Storage
