Product ID: | USBF-P0565-H25-0330 |

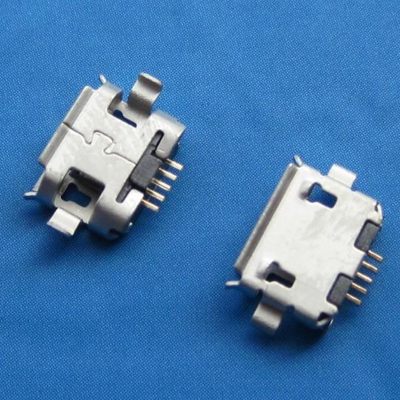

product name: | Micro USB 5pin female B type sink 1.0mm terminal SMT shell DIP |
specification: | Plastic: High temperature UL94V-0; Terminal: Copper alloy housing: Stainless steel |
Product Note: | B type female head, sinking plate 1.0mm, terminal SMT type housing DIP type L9.70*W5.61*H3.00 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1A
2. Operating temperature: -30 °C ~ +80 °C
3. Storage temperature: -30 °C ~ +80 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 100M ohms min ./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones and tablet computers. Navigator, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3 The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled case-->Riveted case-->Electrical inspection-->Pressure proof-->Flatness test-->positive Bit Inspection -> Appearance Inspection -> FQC Inspection -> Storage
