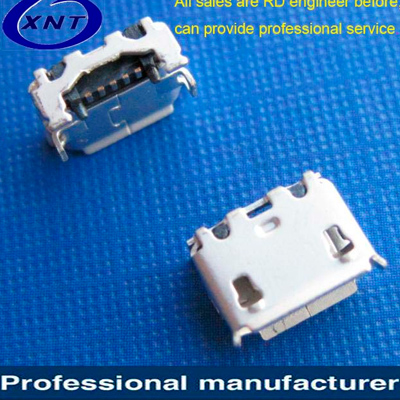

吳江microUSB B type 5pin (Soldering feet: SMT, Housing: DIP) Horns with pillars 3.90mm

  • category:吳江micro USB 5Pin

  • The number of clicks:
  • Release date:2018/06/22
  • Inquiry
details
Product ID:
A01SB1241B01
product name:
A01SB1241B01 6.6mm 7.2mm microUSB B type 5pin (Soldering feet: SMT, Housing: DIP) Horned post 3.90mm
specification:
Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel
Product Note:
B type female connector, terminal SMT type housing DIP type horn type with crimp L7.50*W5.06*H2.45
Product Category:
USB Series SATA Series


Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstand voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. , navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembly shell-->Riveted shell-->Electrical inspection-->Pressure proof-->Flatness test--> Appearance Inspection-->FQC Inspection-->Storage


A01SB1241B01.pdf
