Product ID: | XNTUSBAFSC-*-DIP |

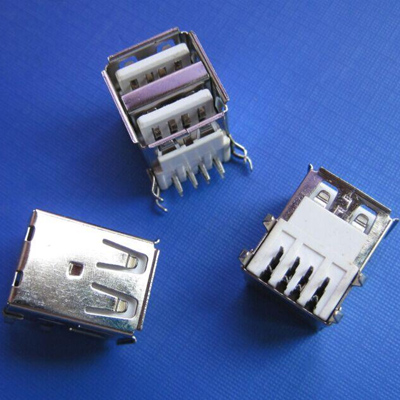

product name: | Double-layer USB A type board DIP type (solder pin: DIP, case: DIP) |
specification: | Plastic: High temperature UL94V-0, white; Terminal: Copper alloy housing: Copper alloy |
Product Note: | Double A type female head, terminal DIP type housing DIP type L17.61*W13.10*H15.50 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms Min.
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet PCs, navigators , LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine plug the first row of terminals -> bend and break the tape -> insert the second row of terminals -> bend and fold the tape -> after assembly plug -->Assembly shell-->Electrical inspection-->Withstand pressure test-->Pore inspection-->Appearance inspection-->FQC inspection-->Storage
