Product ID: | FCL-003 |

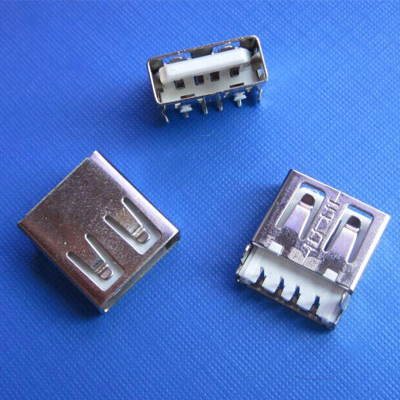

product name: | USB A type on-board 2.0mm DIP type (solder: DIP, case: DIP) without crimping |
specification: | Plastic: High temperature UL94V-0; Terminal: Copper alloy housing: Copper alloy |
Product Note: | A type female head, sink 2.0mm terminal DIP type shell DIP type L14.10*W13.30*H5.90 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms Min.
6. Withstand voltage: 500V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, computers, Notebooks, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the goods Check
3. This product production process is: pre-line inspection -> automatic machine plug terminal -> bending and folding band -> after the assembly plug -> assembly of the shell -> electrical inspection -> pressure Inspection-->hole inspection-->appearance inspection-->FQC inspection-->storage
