Product ID: | XNT-USB-B-012 |

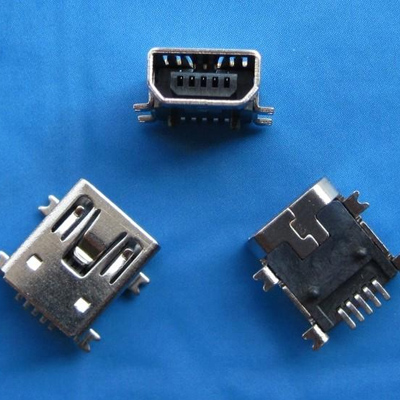

product name: | miniUSB B type 5pin Female (Soldering feet: SMT, Housing: SMT) |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy |
Product Note: | B type female connector, terminal SMT type housing SMT type L9.60*W7.70*H3.90 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms Min.
6. Withstand voltage: 300V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigation Instrument, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembly shell-->Riveted shell-->Electrical inspection-->Withstand pressure test-->Flatness test-->Right position Degree Test --> Appearance Test --> FQC Test --> Store
