Product ID: | MUB-AF010-021 |

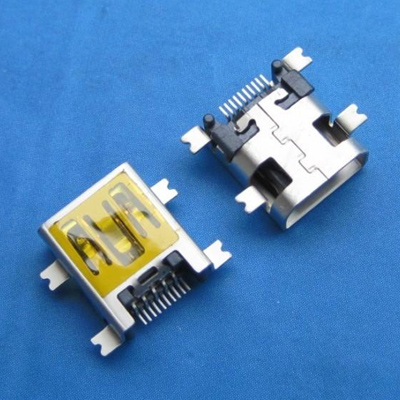

product name: | miniUSB AB type 10pin female sinking plate 1.0mm (Soldering feet: SMT, Housing: SMT) |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Copper alloy |
Product Note: | AB type female connector, terminal SMT type housing SMT type L9.00*W7.50*H3.70 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 0.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms Min.
6. Withstand voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigation Instrument, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled shell-->Rivet-pressed shell-->Electrical inspection-->Withstand pressure test-->Flatness test-->Right position Degree Test --> Appearance Test --> FQC Test --> Store
